With the continuous development of technology, ultrasonic cleaning technology, as an efficient and environmentally friendly cleaning method, is widely used in various fields. As an important component of ultrasonic cleaning technology, ultra-high frequency ultrasonic cleaning transducers are increasingly attracting people’s attention.

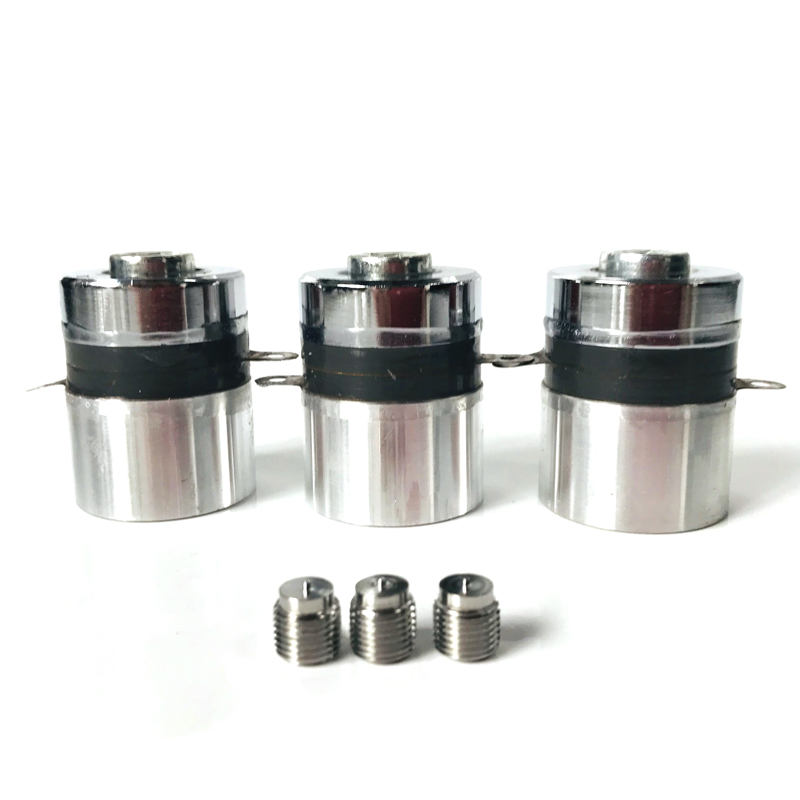

Ultra high frequency ultrasound refers to ultrasound with a frequency above 1000Hz. Its cleaning principle is to use the cavitation effect of ultrasound in liquids to generate strong impact force, and clean dirt, oil stains, and other substances attached to the surface of objects. The ultra-high frequency ultrasonic cleaning transducer is a device that converts electrical energy into ultra-high frequency ultrasonic waves, and its core part is a piezoelectric ceramic transducer. When piezoelectric ceramics are subjected to electrical signals, they undergo deformation, converting electrical energy into mechanical energy and producing ultra-high frequency ultrasonic waves.
| Type | Length（mm） | Weight（g） | Frequency（KHz） | Resonance Impedance （Ω） |
Static Capacity （pF）±10% |
Input Power（W） |
| PU-UT-5435 PZT-4 |
36 | 135 | 54 | 10-20 | 3200 | 35 |
| PU-UT-6860 PZT-8 |
80 | 460 | 68 | 10-20 | 3800 | 60 |
| PU-UT-68120 PZT-4 |
67 | 588 | 68 | 10-20 | 7800 | 120 |
| PU-UT-8060 PZT-4 |
60 | 325 | 80 | 10-20 | 5400 | 60 |
| PU-UT-12060 PZT-4 |
56 | 260 | 120 | 10-20 | 5400 | 60 |
| PU-UT-13550 PZT-4 |
54 | 215 | 135 | 10-20 | 4200 | 50 |
