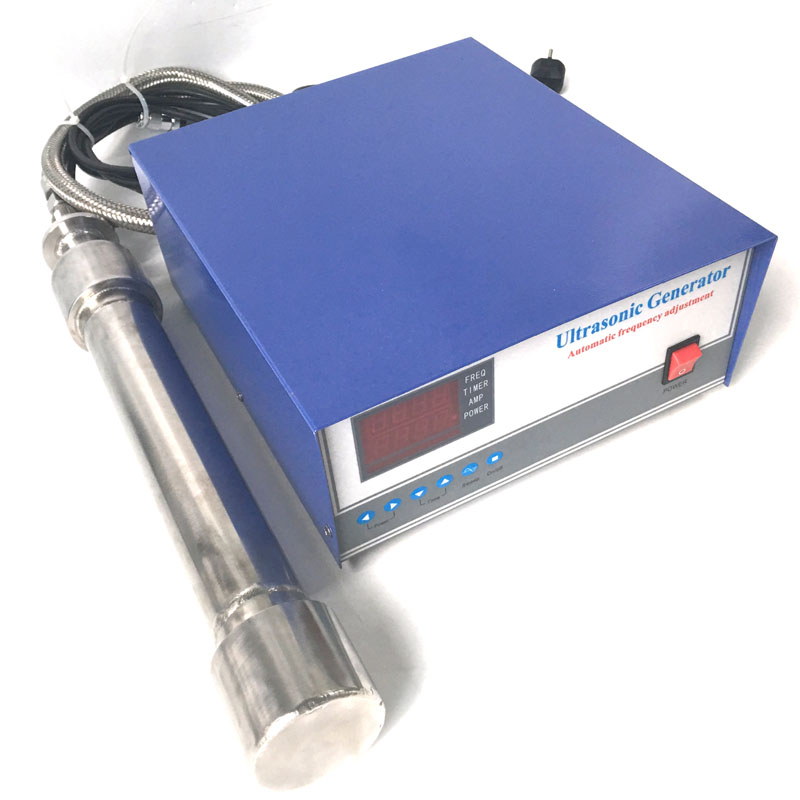

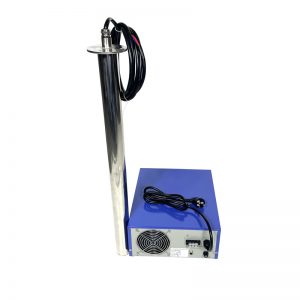

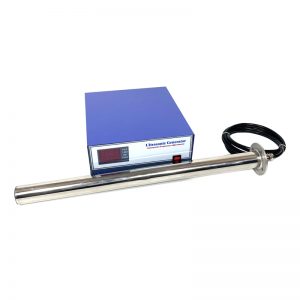

A portable and immersive ultrasonic vibration rod is used to activate the ultrasonic generator. The ultrasonic vibration rod is installed on the top and emits ultrasonic waves into the extraction container. The ultrasonic wave generates a ‘cavitation effect’ and mechanical action in the extraction solvent. The ultrasonic vibration rod has functions such as breaking tissues, viruses, spores, and other cellular structures, homogenizing, emulsifying, mixing, degassing, disintegrating and dispersing, leaching and extracting, and accelerating reactions.
Tubular Equipment
Type
|
Tubular Transducer
Type
|
Frequency
(KHz)
|
Ultrasound
Output(W)
|
Total Length
(mm)
|
Diameter
(mm)
|
Static Capacity
(pF±10%)
|
PU-UE1
|
US-61
|
15-28
|
1000
|
500
|
Φ50-55
|
68000
|
PU-UE5
|
US-25
|
15-28
|
1500
|
850
|
Φ50-55
|
68000
|
PU-UE6
|
US-16
|
15-28
|
2000
|
1100
|
Φ50-55
|
132000
|
