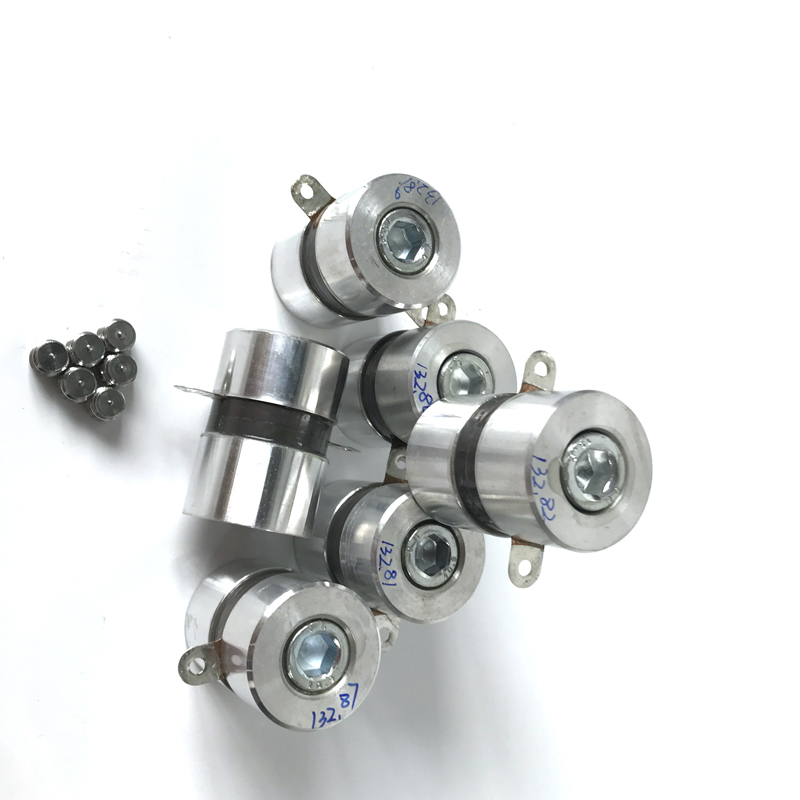

multi frequency ultrasonic cleaning transducer is a device that utilizes the vibration energy of ultrasonic waves for cleaning. It mainly includes two parts: an ultrasonic generator and a transducer. An ultrasonic generator is a device that can convert alternating current into high-frequency alternating current, while a transducer converts high-frequency alternating current into mechanical vibration to generate ultrasonic waves. The vibration frequency of this type of ultrasound is generally above 20000 Hz, which cannot be heard by the human ear, but its vibration amplitude is large and can quickly clean the surface of objects.
Type | Full length(mm) | weight(g) | FR (khz) | impedance(Ω) | CP(Pf)±10% | power(w) |
PT-UT38/80 KHZ P 4 | 61 | 330 | 38/80 | <35 | 4800 | 50 |
PT-UT40/100KHZ P 4 | 54 | 280 | 41/100 | <50 | 5200 | 40 |
PT-UT50K P4 | 42 | 135 | 50 | <35 | 3200 | 25 |
PT-UT28/83/130 KHZ P 4 | 70 | 480 | 28/83/130 | <30 | 5000 | 30 |
PT-UT25/45/80KHZ P4 | 78 | 540 | 25/45/80 | <30 | 5000 | 30 |
PT-UT33/89/135KHZ P4 | 60 | 430 | 33/89/135 | <30 | 5000 | 40 |
PT-UT28/41/123KHZ P4 | 68 | 630 | 28/41/123 | <35 | 6800 | 60 |
PT-UT40/80/120K | 56 | 260 | 120 | <35 | 5400 | 30 |
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K | 81 | 465 | 28/50/60/70/84 | <35 | 5000 | 30 |
PT-UT40/77/100/170KHZ P4 | 55 | 270 | 40/77/100/170 | <30 | 4000 | 30 |
