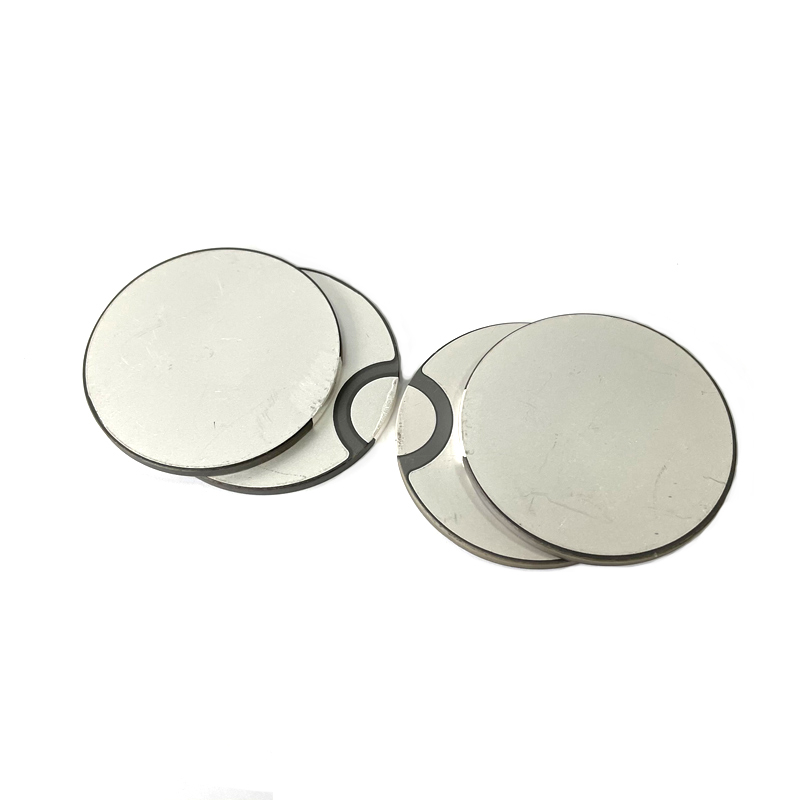

Piezoelectric ceramic sheets are an important electronic material with piezoelectric effects, which can generate electrical signals under the action of mechanical forces or mechanical vibrations under the action of electrical signals. This material is widely used in electronic devices, such as ultrasonic generators, filters, igniters, etc. The preparation process of piezoelectric ceramic sheets mainly includes steps such as batching, mixing, pressing, sintering, and polarization. Firstly, mix a certain proportion of ceramic materials and organic solvents as needed to form a slurry. Next, the slurry is coated on the electrode, and then subjected to processes such as pressing, sintering, and polarization to obtain a piezoelectric ceramic sheet.
| Specification | Dimension (mm) |
Radial frequency (KHz) |
Capacitance (±12.5%) pF |
Dielectric dissipation factortanδ (%) |
Impedance (Ω) |
Electromechanical coupling coefficientKr | Mechanical quality factor (Qm) |
| PLS-QXJP3030 | Φ30×3.0 | 66.7 | 2730 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| PLS-QXJP3530 | Φ35×3.0 | 63 | 3100 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| PLS-QXJP3865 | Φ38×6.5 | 59.9 | 1580 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| PLS-QXJP4530 | Φ45×3.0 | 50 | 5100 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| PLS-QXJP4535 | Φ45×3.5 | 50 | 4700 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| PLS-QXJP5030 | Φ50×3.0 | 46 | 5800 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| PLS-QXJP5035 | Φ50×3.5 | 46 | 6300 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| PLS-QXJP5050 | Φ50×5.0 | 46 | 4150 | ≤0.3 | ≤15 | ≥0.55 | 500 |
