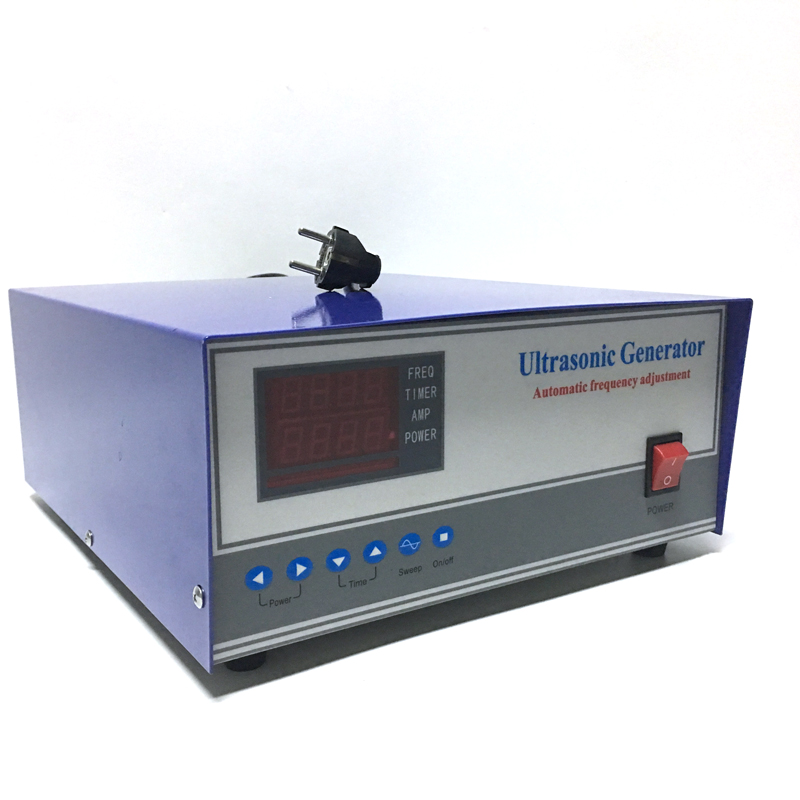

The ultrasonic generator with frequency intelligent control is gradually penetrating into various industrial fields, becoming one of the key technologies to improve production efficiency and product quality. Traditional ultrasonic generators mostly rely on preset frequencies or manual adjustment, which not only limits their flexibility in application, but also makes it difficult to adapt to complex and changing process requirements. The introduction of frequency intelligent control technology has completely changed this situation. Driven by an intelligent control system, the ultrasonic generator can analyze real-time changes in the working environment parameters, such as medium density, temperature fluctuations, 等。, and automatically adjust the output frequency accordingly to ensure that the ultrasonic energy can be applied to the target material in an optimized manner. This dynamic adjustment capability not only improves machining accuracy, but also significantly reduces energy consumption and noise levels, bringing a greener and more efficient solution to the production environment.
類型 |
權力(W) |
頻率 (千 赫) |
感測器編號 |
大小 |
可提供 AC110V60HZ+/-10% 美國/拉丁美洲標準 |
||||
PU-GT300 系列 |
300W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
3-6 |
300x360x150 像素 |
PU-GT600 系列 |
600W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
6-12 |
300x360x150 像素 |
PU-GT900 系列 |
900W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
9-18 |
300x360x150 像素 |
PU-GT1000 系列 |
1000W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
10-20 |
300x360x150 像素 |
PU-GT1200 系列 |
1200W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
12-24 |
300x360x150 像素 |
PU-GT1500 系列 |
1500W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
15-30 |
300x360x150 像素 |
PU-GT1800 系列 |
1800W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
18-36 |
300x360x150 像素 |
PU-GT2000 系列 |
2000W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
20-40 |
300x360x150 像素 |
PU-GT2400 系列 |
2400W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
24-48 |
300x360x150 像素 |
PU-GT3000 系列 |
3000W |
20千 赫,25千 赫,28千 赫,33千 赫,40千 赫 |
50-60 |
300x360x150 像素 |
高頻 |
300W-1200W |
65-80千 赫 |
||
高頻 |
300W-1200W |
120-135千 赫 |
