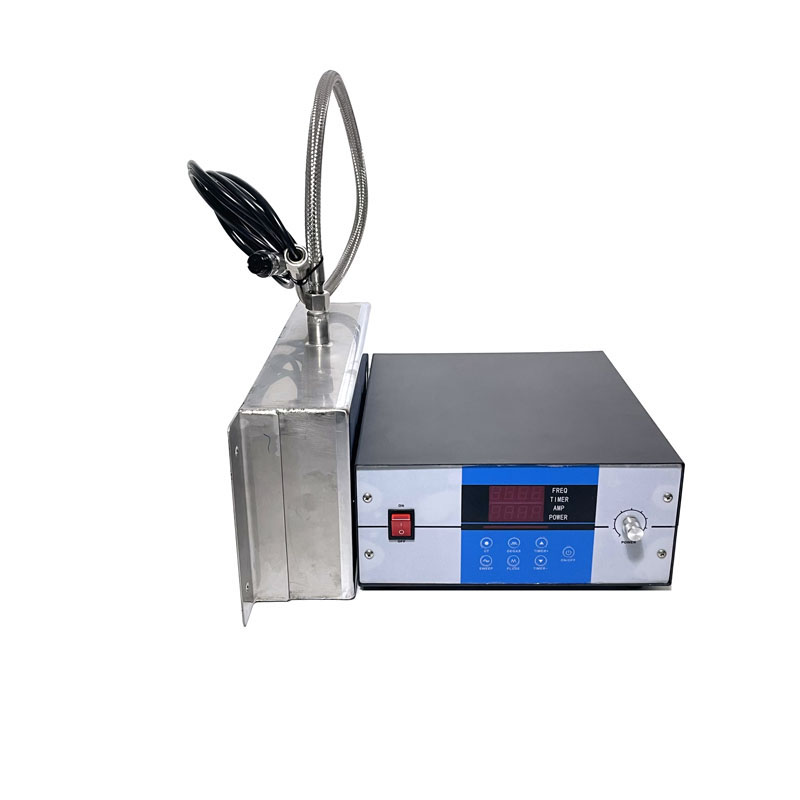

Multi frequency ultrasonic cleaning of vibrating plate boxes, this precise cleaning equipment, plays a crucial role in modern industrial production. Its unique cleaning method combines the physical effects of ultrasound and the effectiveness of chemical cleaning agents, achieving unprecedented cleaning results.
The design of the multi frequency ultrasonic cleaning vibration plate box is clever and delicate, and its internal structure is like a miniature music hall, where different frequencies of ultrasonic waves interweave into a moving movement. These ultrasonic waves propagate in the liquid at extremely high frequencies, forming countless tiny bubbles that quickly collapse and release a powerful impact force. These impact forces are like countless tiny needle tips, able to penetrate into the tiny gaps on the surface of the workpiece, quickly removing impurities such as dirt and grease attached to it, thereby achieving a thorough cleaning effect.
Diamention(mm) |
Frequency(Khz) |
Power(W) |
Ultrasonic Transducer |
|
PLS-ZBH300 |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
PLS-ZBH600 |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
PLS-ZBH1000 |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
PLS-ZBH1200 |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
PLS-ZBH1500 |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
PLS-ZBH1800 |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
PLS-ZBH2000 |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
PLS-ZBH2400 |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
PLS-ZBH3000 |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
PLS-ZBH5000 |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
