The vibration plate design makes the cleaning process more uniform, ensuring that the items to be cleaned are fully vibrated in the cleaning solution, thereby avoiding blind spots in cleaning. At the same time, the vibration plate material has undergone special treatment, which has excellent corrosion resistance and wear resistance, and can maintain efficient and stable cleaning performance for a long time.
The multi frequency ultrasonic industrial cleaning vibrating plate equipment also has an intelligent control system, which can achieve automated cleaning operations. Users can set cleaning time, temperature and other parameters according to their needs, and the equipment will automatically complete the entire cleaning process without manual intervention. This not only improves cleaning efficiency, but also reduces labor costs and enhances the competitiveness of the enterprise.
The multi frequency ultrasonic industrial cleaning vibrating plate equipment has brought revolutionary changes to the field of industrial cleaning due to its high efficiency, environmental protection, and intelligence. It will help enterprises achieve clean production, improve product quality, and promote industrial upgrading.
Diamention(mm) |
Frequency(Khz) |
Power(W) |
Ultrasonic Transducer |
|
PLS-ZBH300 |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
PLS-ZBH600 |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
PLS-ZBH1000 |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
PLS-ZBH1200 |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
PLS-ZBH1500 |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
PLS-ZBH1800 |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
PLS-ZBH2000 |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
PLS-ZBH2400 |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
PLS-ZBH3000 |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
PLS-ZBH5000 |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |

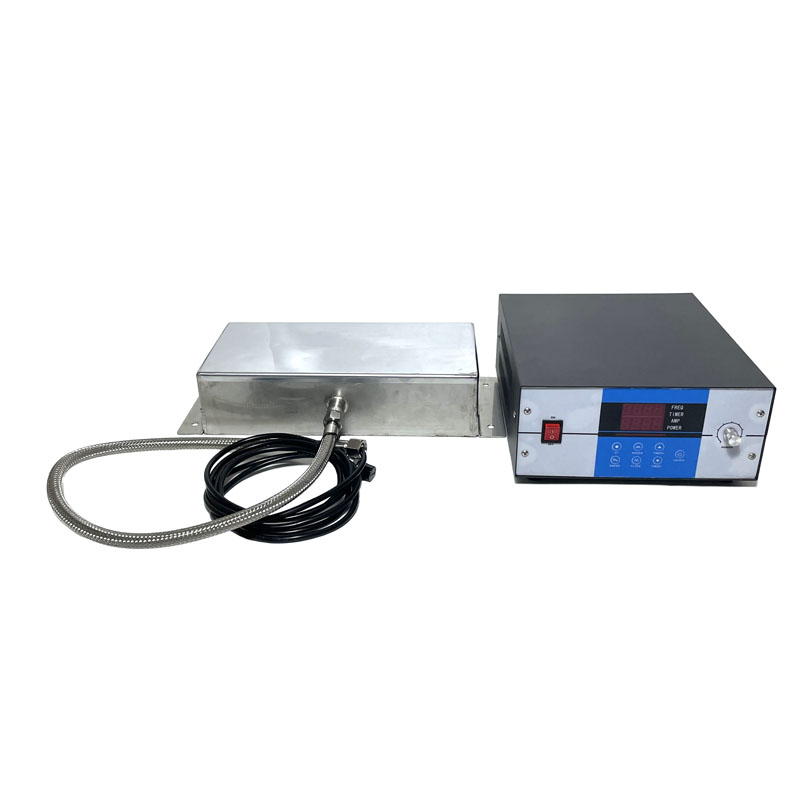

Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
