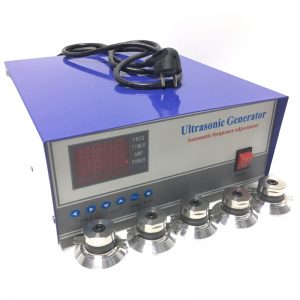

The maximum power output of the 200KHZ high-frequency ultrasonic power generator is 100W-300W. The higher the ultrasonic frequency, the greater the ultrasonic power loss. Therefore, the high-frequency power supply cannot have much power and can only be driven with low power. In addition, the power of the 200kHz ultrasonic cleaning transducer is only about 35W, and a 300W driving power supply can drive 10 ultrasonic transducers at once.
The 200KHZ high-frequency ultrasonic power generator has low cavitation compressive strength and high cavitation density in cleaning agents, and has strong cleaning penetration. Therefore, the 200KHZ high-frequency ultrasonic power generator is suitable for cleaning concave grooves, gaps, deep holes and other product workpieces, such as precision machined parts, optical lenses, laboratory glass containers, semiconductor devices, electronic components, etc.
Finally, considering the cleaning effect and economy, the frequency is generally selected in the range of 20-130KHZ. Of course, the correct selection of frequency is crucial, and the specific and appropriate selection of working frequency requires certain experiments to be conducted.
|
Type |
Power(W) |
Frequency (Khz) |
Transducer numbers |
Size |
|
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE |
||||
|
PLS-QXDY-300 |
300W |
17khz,20khz,25khz,28khz,33khz,40khz |
3-6 |
300x360x150 |
|
PLS-QXDY-600 |
600W |
17khz,20khz,25khz,28khz,33khz,40khz |
6-12 |
300x360x150 |
|
PLS-QXDY-900 |
900W |
17khz,20khz,25khz,28khz,33khz,40khz |
9-18 |
300x360x150 |
|
PLS-QXDY-1000 |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz |
10-20 |
300x360x150 |
|
PLS-QXDY-1200 |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz |
12-24 |
300x360x150 |
|
PLS-QXDY-1500 |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz |
15-30 |
300x360x150 |
|
PLS-QXDY-1800 |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz |
18-36 |
300x360x150 |
|
PLS-QXDY-2000 |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz |
20-40 |
300x360x150 |
|
PLS-QXDY-2400 |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz |
24-48 |
300x360x150 |
|
PLS-QXDY-3000 |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
||
|
High Frequency |
100W-300W |
175-200KHZ |
||
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during |
||||
