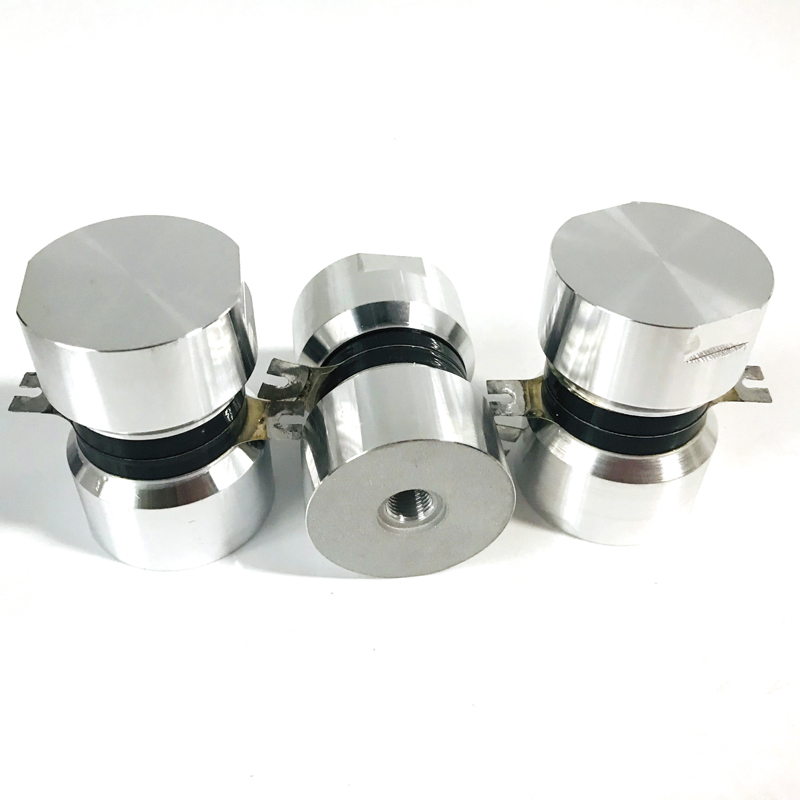

The 200KHZ 35W high-frequency ultrasonic transducer oscillator, also known as the ultrasonic oscillator, is a device that converts electrical energy into mechanical energy. Under the action of a high-frequency electric field, the piezoelectric ceramic plate of the transducer oscillator undergoes expansion and contraction deformation, thereby driving the connected vibration system to generate high-frequency vibration. When this high-frequency vibration propagates in the medium, ultrasonic waves are formed. A frequency of 200KHZ means 200000 vibrations per second, while a power of 35W ensures that the oscillator can generate enough energy to meet the needs of various application scenarios.
The characteristics of the oscillator of the 200KHZ 35W high-frequency ultrasonic transducer are mainly reflected in the following aspects: firstly, its high-frequency characteristics make the ultrasonic wave have stronger penetration and resolution, which can complete cleaning, welding and other tasks in a shorter time, and improve production efficiency. Secondly, the 35W power ensures that the oscillator can operate stably in various harsh environments, with high reliability and durability. In addition, the oscillator also has advantages such as small size, light weight, and easy installation, making it easy to integrate on various devices.
| Type | Length（milímetro） | Weight（g） | Frequency（Khz） | Resonance Impedance （Ω） |
Static Capacity （pF）±10% |
Input Power（W） |
| PU-UT-5435 PZT-4 |
36 | 135 | 54 | 10-20 | 3200 | 35 |
| PU-UT-6860 PZT-8 |
80 | 460 | 68 | 10-20 | 3800 | 60 |
| PU-UT-68120 PZT-4 |
67 | 588 | 68 | 10-20 | 7800 | 120 |
| PU-UT-8060 PZT-4 |
60 | 325 | 80 | 10-20 | 5400 | 60 |
| PU-UT-12060 PZT-4 |
56 | 260 | 120 | 10-20 | 5400 | 60 |
| PU-UT-13550 PZT-4 |
54 | 215 | 135 | 10-20 | 4200 | 50 |
