Ultrasonic fluid stirring equipment, as an indispensable and efficient stirring tool in modern industry, its unique working principle and excellent performance make it stand out in many fields.
This device utilizes the high-frequency vibration of ultrasound and converts electrical energy into mechanical energy through its specially designed transducer, resulting in small and rapid pressure fluctuations in the fluid. These waves propagate at an extraordinary speed in the liquid, forming countless tiny eddies, thereby achieving efficient stirring of the fluid.
The charm of ultrasonic fluid stirring equipment lies not only in its high efficiency, but also in its unique stirring method. Compared with traditional mechanical stirring, it does not require complex transmission mechanisms, avoiding problems of mechanical wear and leakage, thereby greatly extending the service life of the equipment. Meanwhile, due to the action of ultrasound, the stirring process is more uniform, which better preserves the properties of the fluid.

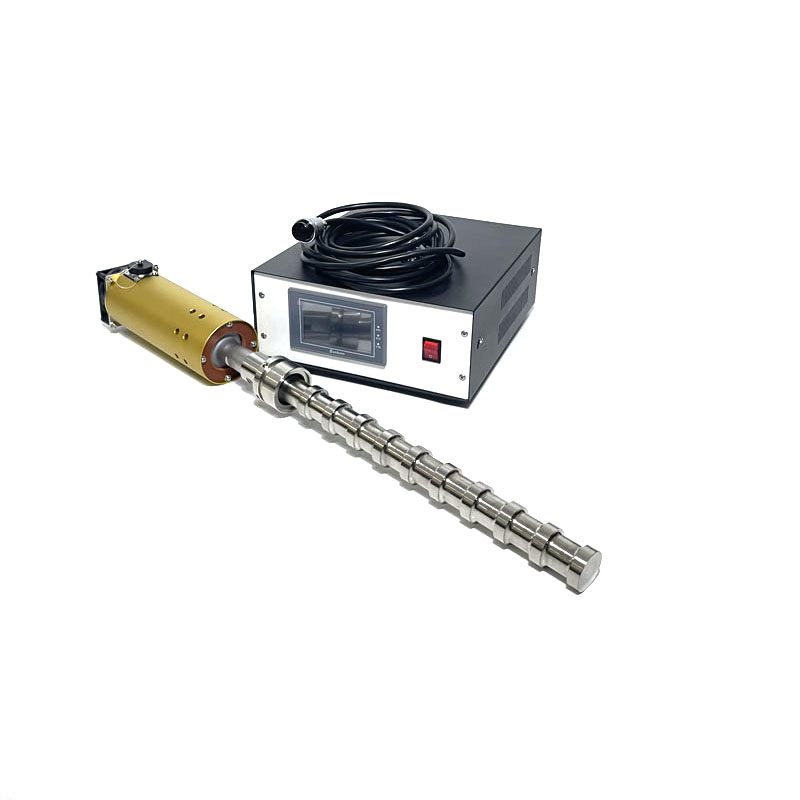

Tubular Equipment
Type
|
Tubular Transducer
Type
|
Frequency
(KHz)
|
Ultrasound
Output(W)
|
Total Length
(mm)
|
Diameter
(mm)
|
Static Capacity
(pF±10%)
|
PU-UE1
|
US-61
|
15-28
|
1000
|
500
|
Φ50-55
|
68000
|
PU-UE5
|
US-25
|
15-28
|
1500
|
850
|
Φ50-55
|
68000
|
PU-UE6
|
US-16
|
15-28
|
2000
|
1100
|
Φ50-55
|
132000
|
